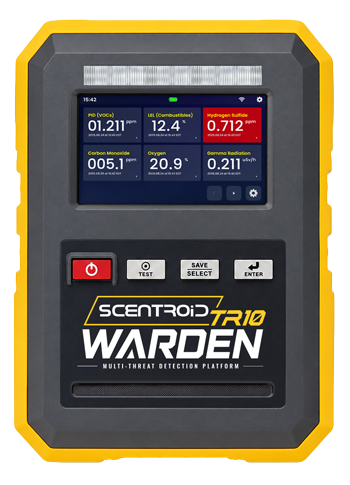

TR10 WARDEN

PORTABLE MULTI-THREAT DETECTION FOR
CBRNE OPERATIONS

The TR10 Warden Portable Multi-Threat Detection Platform combines chemical, gas, and radiation monitoring into a rugged portable platform designed for emergency response, hazardous materials incidents, industrial safety, and critical infrastructure protection.

Multi-threat
Detection

Gas & Radiation

Rugged &
Reliable

Built for the Field

Lightweight &
Portable

Under 1 Kg

Connected
Intelligence

Real-time Data

Designed,
Built, Support

In Canada

WHY TR10 WARDEN

One Platform. Multiple Threats.

Emergency responders and industrial safety teams often deploy multiple instruments to identify unknown hazards. The TR10 Warden Portable Multi-Threat Detection Platform consolidates chemical gas detection and radiological monitoring into a single rugged platform, reducing deployment time while improving situational awareness.

CHEMICAL THREAT DETECTION

Detects a wide range of hazardous gases including VOCs, HF, H2S, CO, O2, and combustable gases (LEL) to identify chemical threats early and protect personnel

RADIATION MONITORING

Integrated gamma radiation detection provides real-time situational awareness for radiological incidents and supports safe decision making in complete environments

MOBILE
DEPLOYMENT

Lightweight and compact at under 1 kg. The TR10 Warden features a shoulder strap and glove-friendly controls for hands-free operation during active deployments.

STATIONARY MONITORING

Use the integrated kickstand or standard tripod mount to deploy for fixed-point monitoring, perimeter securty, or area protection.

Reliable. Rugged. Ready.

Engineered in Canada and built for the most demanding environments and critical operations.

IP64 RATED

Protects against dust and water splashes

EXTREME TEMPERATURES

Operates in -50°C to +50°C

RAPID BOOT

Ready to go in under 10 seconds

PPE Compatible

Large buttons for gloved operation

THREAT DETECTION CAPABILITIES

Detect the Threat Before it Escalates

The TR10 Warden supports a configurable range of gas, radiation, and environmental sensors tailored to mission requirements. The sensor suite shown below represents one example deployment, demonstrating how the platform can be equipped to provide early warning, real-time data, and critical situational awareness in demanding operational environments.

1. Volatile Organic Compounds (VOC)

Photoionization (PID) technology detects trace levels of VOCs and hazardous vapors for early identification of chemical releases.

RANGE: 0 - 2000 ppm | RESOLUTION: 10 ppb

2. Hydrogen
Fluoride (HF)

Critical for lithium-ion battery thermal runaway detection and industrial process monitoring. Provides early warning of highly corrosive HF threats.

RANGE: 0 - 20 ppm | RESOLUTION: 0.1 ppm

3. Hydrogen
Sulfide (H2S)

Protects personnel in wastewater, petrochemical, and confined-space operations from dangerously toxic H2S exposure.

RANGE: 0 - 200 ppm | RESOLUTION: 0.1 ppm

4. Carbon
Monoxide (CO)

Continuous monitoring for combustion processes, industrial facilities, and enclosed environments to prevent CO exposure.

RANGE: 0 - 500 ppm | RESOLUTION: 0.1 ppm

5. Oxygen Deficiency

Monitors oxygen levels to ensure safe entry and work in confined spaces and inerted environments.

RANGE: 0 - 30% Vol | RESOLUTION: 0.1% Vol

6. Combustible Gas (LEL)

Detects combustible gases and vapors to provide early warning of explosive atmospheres.

RANGE: 0 - 100% LEL | RESOLUTION: 0.1% LEL

7. Gamma Radiation

Integrated Geiger counter provides real-time gamma radiation detection for radiological incidents.

RANGE: 0 – 20000 M.Rem/h | RESOLUTION: 10 M.Rem/h

LITHIUM BATTERY FIRE DETECTION

EARLY WARNING FOR LITHIUM ION
BATTERY FIRES

Hydrogen Fluoride (HF) is one of the earliest and most dangerous gases released during lithium-ion battery thermal runaway events.
The TR10 Warden can be configured with a dedicated HF sensor, providing first responders, battery storage operators, and industrial safety personnel with early warning of potentially catastrophic battery failures.

Battery Energy Storage Systems

Fire Department Usage

EV Charging Infrastructure

HAZMAT Response Teams

Battery Manufacturing

Industrial Safety Programs

Battery Recycling Facilities

Critical Infrastructure

PORTABLE MULTI-THREAT DETECTION PLATFORM DEPLOYMENT MODES

Deploy Anywhere. Monitor Everywhere.

The TR10 Warden adapts to you. Use it as a portable detector during active surveys or set it up as a fixed monitor for continuous area protection and perimeter security.

Portable Survey Mode

Stay Mobile. Stay informed

Leak Investigations: Identify unknown chemicals or radiation hazards in real time.
Perimeter Sweeps: Rapidly screen perimeters and access points for threats
Facility Inspections: Monitor process areas, storage tanks, and high risk zones.
Incident Response: Make faster, safer decisions in dynamic environments.

FIXED MONITORING MODE

Set it. Secure the area. Stay ahead.

Hot Zone Monitoring: Continuously monitor hazardous areas for gas or radiation threats
Exclusion Zones: Provide early warning to protect personnel and limit exposure
Incident Command Posts: Deliver real-time data to command for better situational awareness
Teporary Perimeter Security: Deploy quickly to establish monitoring in critical locations.

Probe Attachment Mode

Remote Sampling. Safer Decisions.

Leak Investigations: Sample gases from battery packs, enclosed spaces, and hard-to-reach areas without entering the hazard zone.
Confined Space Screening: Assess atmospheres before personnel entry to improve worker safety.
Hotspot Verification: Draw air directly from suspected release points for faster hazard confirmation.
Emergency Response: Maintain distance from potentially dangerous sources while collecting real-time data.

Multiple ways to protect with one device

Warden gives you the flexibility for handheld surveys to fixed monitoring

THREAT DETECTION CAPABILITIES

Powerful Software. Smarter Decisions.

The TR10 Warden works seamlessly with the Scentroid software suite to deliver real-time insights, mapping, analytics, and reporting.

ON-BOARD INTERFACE

Real-Time Situational awareness

VIew live gas concentrations, radiation levels, alarm status, and device health directly on the Warden's high contract touchscreen. Access historical trend graphs and sensor diagnostics in the field.

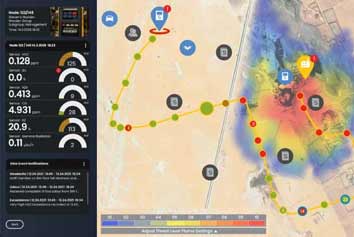

SIMS3 Software

Map. Monitor. Act.

Live software that provides a geographic overview of device positions, recorded sampling routes, and the identification of high-risk zones through a GIS-based interface.

Analytics

Analyze. Report. Improve.

A comprehensive environmental intelligence display for advanced data processing, incident reporting, long-term analysis, and automated alerts & reporting.

SPECIFICATIONS

Article	Specification
Product Name	TR10 Warden
Device Type	Portable Multi-Threat Detection Platform
Deployment Modes	Portable Survey Mode, Stationary Monitoring Mode
Enclosure Rating	IP64
Operating Temperature	-50°C to +50°C
Dimensions	221 × 168 × 64 mm
Weight	< 980 g
Construction	Ruggedized enclosure with rubberized impact bumper
User Interface	High-contrast backlit LCD with glove-friendly physical controls
Audible Alarm	95 dB @ 30 cm
Visual Alarm	High-visibility hazard indication lighting
PPE Compatibility	Designed for Level A/B PPE operation
Boot Time	< 10 seconds
Internal Battery	Rechargeable Lithium-Ion
Battery Runtime	Minimum 12 hours continuous operation
External Battery Support	Hot-swappable V-Mount battery system
Emergency Backup Power	2-slot alkaline battery adapter
Power Monitoring	Real-time battery telemetry and time-to-empty estimation
Wireless Connectivity	LTE, LoRa Mesh, BLE, Wi-Fi
Positioning	Integrated GPS
Data Interface	USB-C
Network Interface	USB-C to Ethernet adapter support
Industrial Protocols	Modbus Peer-to-Peer
Charging Interface	Reinforced external pin connector
Data Logging	On-board storage and historical trend visualization
Analytics Platform	SIMS3 Software + Analytics
Mounting Options	3/8"-16 UNC tripod mount
Carrying Method	Heavy-duty padded shoulder strap
Country of Origin	Designed, Built & Supported in Canada
