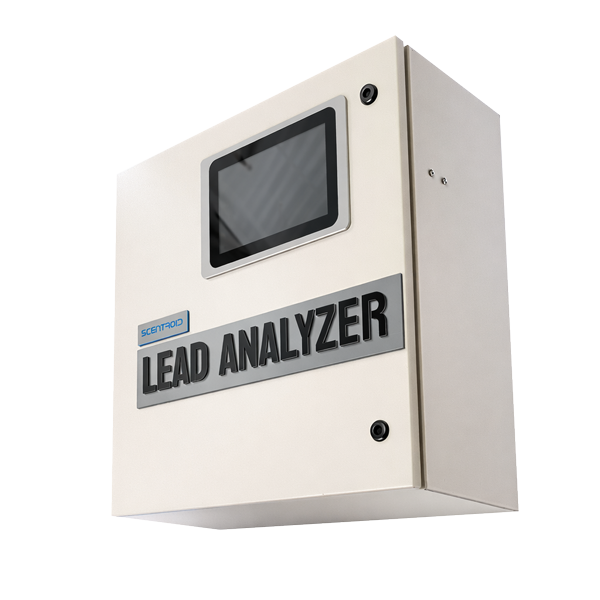

An ambient air sample is taken through a port into the Airborne Lead Analyzer. The sample is then filtered using a special membrane filter paper. Our X-Ray Fluorescence (XRF) sensor, which is a proven measurement principle and non-destructive analytical
technique, scans the sample on the filter and measures the concentration of lead in the air.
Users can view instant results in our SIMS3 Software. Autocalibration options are available, and the device can collect and continuously analyze air samples. Scentroid’s Airborne Lead Analyzer is a unique and cutting-edge solution in today’s market.
Complies with General Industry Standard for Lead (29CF1910.1025)
Significantly lowers regulatory costs for compliance compared to XRF or lab methods such as NIOSH 7082
Assists you with following occupational and environmental regulations
Periodic replacement of only the membrane filter depending on usage for continuously lead air testing
Total sampling and analysis costs less than $2.00 per sample
Mining Operations, Shooting Ranges, Automotive Supply Chains, Lead-acid Battery Manufacturing, Construction, and more...
X-ray fluorescence (XRF) is a non-destructive analytical technique used to determine the elemental composition of materials.
High-energy X-rays are directed at the material
The X-rays knock out inner electrons from the atoms in the material.
The atom becomes unstable, and outer electrons jump to fill the gaps, emitting energy in the form of X-ray fluorescence.
The emitted X-rays have unique energies depending on the element, allowing the instrument to detect and identify the elements present.
The Scentroid Lead Analyzer integrates seamlessly with HVAC systems through BACNET (Building Automation and Control Networks), ensuring real-time response to elevated lead levels. When the analyzer detects an
increase in airborne lead concentrations, it can be setup to automatically trigger the building’s HVAC system to optimize air quality, further minimizing lead exposure by adjusting airflow, filtration, and ventilation based on the specific contamination levels detected.
Our Lead Analyzer features an intuitive touch-screen display, making it simple to operate. It clearly shows the lead concentration, along with levels of other selected metals. In addition to the on-screen data, all collected information is seamlessly transferred to Scentroid’s SIMS3 software for easy access and future analysis.
Scentroid’s Airborne Lead Analyzer provides real-time data accessibility through easy Wi-Fi connectivity. The device communicates effortlessly once per minute, ensuring that you receive continuous updates on environmental conditions. View data from anywhere through our powerful Sensor Information Management (SIMS3) Software.
Alarm levels can be set up based on individual pollutants or on odour concentration.
Breaching the designated alarm thresholds will trigger SMS and/or email alerts to be sent out to authorized operators. Additionally, the Airborne Lead Analyzer can be set up to provide localized audible alarms.
Airborne Lead Analyzer is great for conducting odour Laboratory Research and it can also use on other industries.
SIMS3 sensor information management software, is our all-inclusive software used to view and analyze historical data, run diagnostics, make predictions, and configure various settings for your supported Scentroid device. It offers a complete and integrated suite for ambient air chemical analysis and odor management. SIMS3 can collect data from thousands of devices covering an entire area, using a unique and highly intuitive facility control system.
SIMS3 transforms air quality monitoring and odor complaint management with the power of AI. Our user-friendly interface offers intuitive access to a range of features including pollutant threat assessment, air quality alerts, historical data analysis, sample tracking, plume detection, and complaint management, empowering users of all levels to conduct sophisticated data analytics effortlessly.
View data in several formats including temporal view, statistical view, AQI Analysis view, and heat map.
Take your analytic capabilities even further by analyzing your recorded events, event types, and overall event activity. In this module, you will be able to determine your most triggered event type and the days with the highest recorded activity.
As shown here in temporal view, the user can Isolate or compare collected sensor data for any user-defined timeframe in an easy to read chart. Any event or event type that occured within the specified timeframe is also tracked.
Isolate and determine individual sensor reading trends with our detailed statistical analysis view. Data is presented as percentages vs concentration for quick reference. A data trend guide displays whether your tracked chemical readings are displaying an increase or decrease.
Based on established AQI Thresholds (either automatically generated or user-defined), view recorded AQI for any period of time. This module will also allow you to view how many times AQI exceeded these thresholds, and for how long (percentage).
View each individual sensor’s heat map within a user-defined period. Concentration is presented in this format to assist the user with visually defining patterns and trends. Heat map data is presented as date vs. time.
The SIMS3 reporting module provides you with the tools you need to make informed decisions regarding your monitoring projects. At the click of a button, this document generates averages as well as thorough individual sensor reports. Users can schedule weekly, monthly, or annual reports emailed directly to them once generated!
Subject | Specification |
|---|---|
Product Name | Scentroid Airborne Lead Analyzer |
Sensors | Lead (Detectable compound), Other theoretical metals (Optional) |
Detection Method | X-Ray Fluorescence (XRF) |
Sample Methods | Airborne, Threshold |
Sampling Rate | Every 10 minutes/ 1 hour/ 8 hour/ 12 hour/ 24 hour |
Minimum Detection of Air Sample | 0.89 ug/m^3 (1 hour sampling) |
Minimum Detection of Threshold Sample | 2 ppm |
Power Input | 110-220V 2.5A |
Power | Wall Mounted |
Dimensions | Specification |
|---|---|
Weight | 20 kg |
Size | 460mm x 400mm x 590mm |
Communication | Specification |
|---|---|
Internal Storage | 64 GB |
Communication | WiFi, MODBUS |
Cloud Server | SIMS3 Data Logging, Analysis, Alarms, Remote Management |
Support, Device Health, Warranty | Specification |
|---|---|
Device Health | Daily Sensor Health & Replacement Check and Reminders |
Warranty | 24 Months Full Warranty (Parts, Including Sensors) |
Scentroid is committed to provide our customers with the highest quality products & services. We use established best practices of our industry to meet or exceed your quality expectations. To achieve these objectives and meet the requirements of our customers, we aim to:
We are so confident of the reliability of our products that we are glad to offer our clients comprehensive 24 month full warranty, covering even the sensors in our equipment! This does not include components such as filters and PID lamps. Our customers get access to our trained and authorized service center for the duration of the warranty subject to the terms and conditions of the warranty. For any related issue, you can reach one of our engineers via email for any technical issue. For fast and efficient support simply email support@scentroid.com
