Scentroid

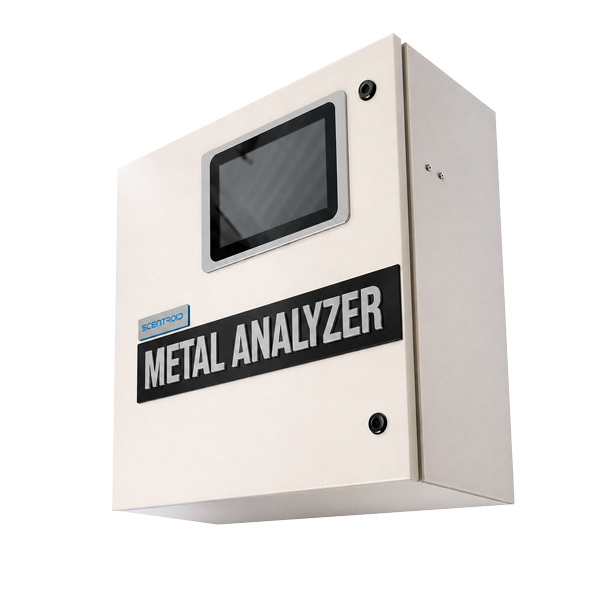

Airborne Metal Analyzer

Quantify the Concentration of Heavy Metal in the Air

You can now rapidly detect multiple heavy metals in the air and measure the total metal concentration of various elements in air samples, with results available in just ten minutes. Ideal for compliance checks with both environmental and occupational health regulations.

airborne-metal-analyzer-hero

Why choose Airborne Metal Analyzer

World's Smartest Heavy Metal
Air Monitoring Equipment

An ambient air sample is taken through a port into the Airborne Heavy Metal Analyzer. The sample is then filtered using a special membrane filter paper. Our X-Ray Fluorescence (XRF) sensor, which is a proven measurement principle and non-destructive analytical
technique, scans the sample on the filter and measures the concentration of heavy metal in the air.

Our Heavy Metal Analyzer can measure up to 30 varieties of airborne metals based on your sensor option. Users can view instant results in our SIMS3 Software. Autocalibration options are available, and the device can collect and continuously analyze air samples. Scentroid’s Airborne Heavy Metal Analyzer is a unique and cutting-edge solution in today’s market.

Features at a Glance

Metal Standard Compliance

Complies with General Industry Standard for Metals (29CF1910.1025)

Lowers Total Costs

Significantly lowers regulatory costs for compliance compared to XRF or lab methods such as NIOSH 7082

Your Regulatory Assistant

Assists you with following occupational and environmental regulations

Low Maintenance Requirement

Periodic replacement of only the membrane filter depending on usage for continuously metal air testing

Less Than $2 Per Sample

Total sampling and analysis costs less than $2.00 per sample

Wide Variety of Industries

Mining Operations, Shooting Ranges, Automotive Supply Chains, Construction, and more...

How It Works

Our Airborne Metal Analyzer takes ambient air samples through a port and filters the air using a membrane filter paper. Then, it uses X-Ray Fluorescence (XRF) Technology to scan the filter paper and measure the concentration of metal in the air.

X-ray Fluorescence

X-ray fluorescence (XRF) is a non-destructive analytical technique used to determine the elemental composition of materials.

X-ray Excitation

High-energy X-rays are directed at the material

Electron Displacement

The X-rays knock out inner electrons from the atoms in the material.

Energy Emission

The atom becomes unstable, and outer electrons jump to fill the gaps, emitting energy in the form of X-ray fluorescence.

Element Identification

The emitted X-rays have unique energies depending on the element, allowing the instrument to detect and identify the elements present.

Airborne Lead

If you’re looking to monitor lead in the air, Scentroid also offer a similar product, the Airborne Lead Analyzer. Contact our sales representative to find out which product works the best for your facility!

User Interface

Our Lead Analyzer features an intuitive touch-screen display, making it simple to operate. It clearly shows the lead concentration, along with levels of other selected metals. In addition to the on-screen data, all collected information is seamlessly transferred to Scentroid’s SIMS3 software for easy access and future analysis.

Real-Time Data Accessibility

Scentroid’s Airborne Heavy Metal Analyzer provides real-time data accessibility through easy Wi-Fi connectivity. The device communicates effortlessly once per minute, ensuring that you receive continuous updates on environmental conditions. View data from anywhere through our powerful Sensor Information Management (SIMS3) Software.

Set Alarm & Notifications

Alarm levels can be set up based on individual pollutants or on odour concentration.

Breaching the designated alarm thresholds will trigger SMS and/or email alerts to be sent out to authorized operators. Additionally, the Airborne Heavy Metal Analyzer can be set up to provide localized audible alarms.

Ideal for Multiple Industries

Airborne Heavy Metal Analyzer is great for conducting odour Laboratory Research and it can also use on other industries.

SIMS3

Sensor Information Management System

SIMS3 sensor information management software, is our all-inclusive software used to view and analyze historical data, run diagnostics, make predictions, and configure various settings for your supported Scentroid device. It offers a complete and integrated suite for ambient air chemical analysis and odor management. SIMS3 can collect data from thousands of devices covering an entire area, using a unique and highly intuitive facility control system.

Powered by
Artificial Intelligence

SIMS3 transforms air quality monitoring and odor complaint management with the power of AI. Our user-friendly interface offers intuitive access to a range of features including pollutant threat assessment, air quality alerts, historical data analysis, sample tracking, plume detection, and complaint management, empowering users of all levels to conduct sophisticated data analytics effortlessly.

SIMS3 Analytics

View data in several formats including temporal view, statistical view, AQI Analysis view, and heat map.

Event Analytics

Take your analytic capabilities even further by analyzing your recorded events, event types, and overall event activity. In this module, you will be able to determine your most triggered event type and the days with the highest recorded activity.

scentroid-CTmini-particulate-matter-monitor-icon-temporal-mode

Temporal Mode

As shown here in temporal view, the user can Isolate or compare collected sensor data for any user-defined timeframe in an easy to read chart. Any event or event type that occured within the specified timeframe is also tracked.

scentroid-CTmini-particulate-matter-monitor-icon-statistical-mode

Statistical Mode

Isolate and determine individual sensor reading trends with our detailed statistical analysis view. Data is presented as percentages vs concentration for quick reference. A data trend guide displays whether your tracked chemical readings are displaying an increase or decrease.

scentroid-CTmini-particulate-matter-monitor-icon-aqi-analysis

AQI Analysis

Based on established AQI Thresholds (either automatically generated or user-defined), view recorded AQI for any period of time. This module will also allow you to view how many times AQI exceeded these thresholds, and for how long (percentage).

scentroid-CTmini-particulate-matter-monitor-icon-heat-map

Heat Map

View each individual sensor’s heat map within a user-defined period. Concentration is presented in this format to assist the user with visually defining patterns and trends. Heat map data is presented as date vs. time.

Export Reports

The SIMS3 reporting module provides you with the tools you need to make informed decisions regarding your monitoring projects. At the click of a button, this document generates averages as well as thorough individual sensor reports. Users can schedule weekly, monthly, or annual reports emailed directly to them once generated!

Airborne Metal Analyzer Specifications

Subject

Specification

Product Name

Scentroid Airborne Metal Analyzer

Sensors

Up to 30 theoretical metals

Detection Method

X-Ray Fluorescence (XRF)

Sample Methods

Airborne, Threshold

Sampling Rate

Every 10 minutes/ 1 hour/ 8 hour/ 12 hour/ 24 hour

Minimum Detection of Air Sample

0.89 ug/m^3 (1 hour sampling)

Minimum Detection of Threshold Sample

2 ppm

Power Input

110-220V 2.5A

Power

Wall Mounted

Dimensions

Specification

Weight

20 kg

Size

460mm x 400mm x 590mm

Communication

Specification

Internal Storage

64 GB

Communication

WiFi, MODBUS

Cloud Server

SIMS3 Data Logging, Analysis, Alarms, Remote Management

Support, Device Health, Warranty

Specification

Device Health

Daily Sensor Health & Replacement Check and Reminders

Warranty

24 Months Full Warranty (Parts, Including Sensors)
